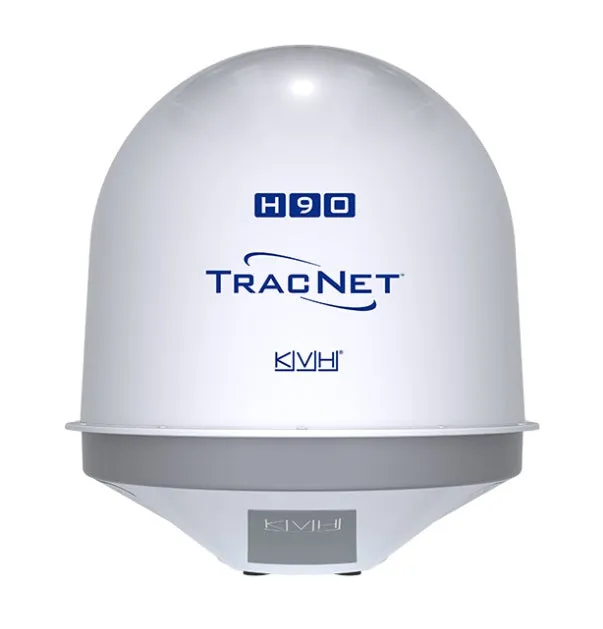

KVH TracNet H90 System with TracNet Hub

KVH H90 1m Hybrid Terminal with Satellite, Cellular, and Wi-Fi.

• Rugged, commercial-grade system, diameter 1 m (39.4 in), weight 86 kg (189 lbs)


• Satellite, cellular, and Wi-Fi capabilities in one integrated design


• Automatically switches to the best connectivity option based on cost, data quality, and more


• Data speeds as fast as 20/3 Mbps (down/up)


• For boats 90 feet (27 meters)


• Global satellite, cellular, and shore-based Wi-Fi in one integrated design


• Automatic hybrid switching based on service cost, signal strength and data quality


• Supports use of user-supplied SIM cards


• Dual channels — high speed and unlimited use plus two VoIP lines


• High-performance tracking using digital IMUs and a commercial-grade rotary joint


• Precision 3-axis stabilized pedestal design plus stabilized skew


• Single cable install

Enjoy the fastest, most reliable connectivity at sea and in port with the KVH ONE™ hybrid network and groundbreaking TracNet™ terminals. Each system includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication option at all times, in all sea states, and at any speed. It’s like having three antennas in one! Captains can share proprietary files with the office on shore. Crew members can enjoy entertainment, news, sports, and social media, plus enjoy crystal-clear voice calls with family. Don’t think about how to connect, just feel confident that captains and crew can connect to whatever they need at any time.

The TracNet™ H90 provides the fastest, most reliable connectivity with the KVH ONE™ hybrid network, and is as much as 32% lighter than competing 1-meter systems. The groundbreaking TracNet H90 features a tuned carbon fiber dish and includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication options at all times, in all sea states.

Automatic hybrid Switching
yes

Connectivity options
VSAT, Cellular, Wi.fi

Antenna diameter/weight
39.4" , 189lbs

BDU (Below Deck Unit)
tracnet Hub (AC)

Max VSAT Speeds Mbps² (Down/Up)
20/3 Mbps, or 40/3 with KVH Elite Subscription

Satellite Channels
Dual High-speed

Stabilixation
Three axis stabelized skew

Supports user-supplied SIM card
Yes

easy installation
Single cable install

High-performance tracking
Digital IMU's and commercial-grade rotary joint for uniterupted reception

KVH Elite Compatible
Yes

Cybersecurity
Integrated terminal and network security
