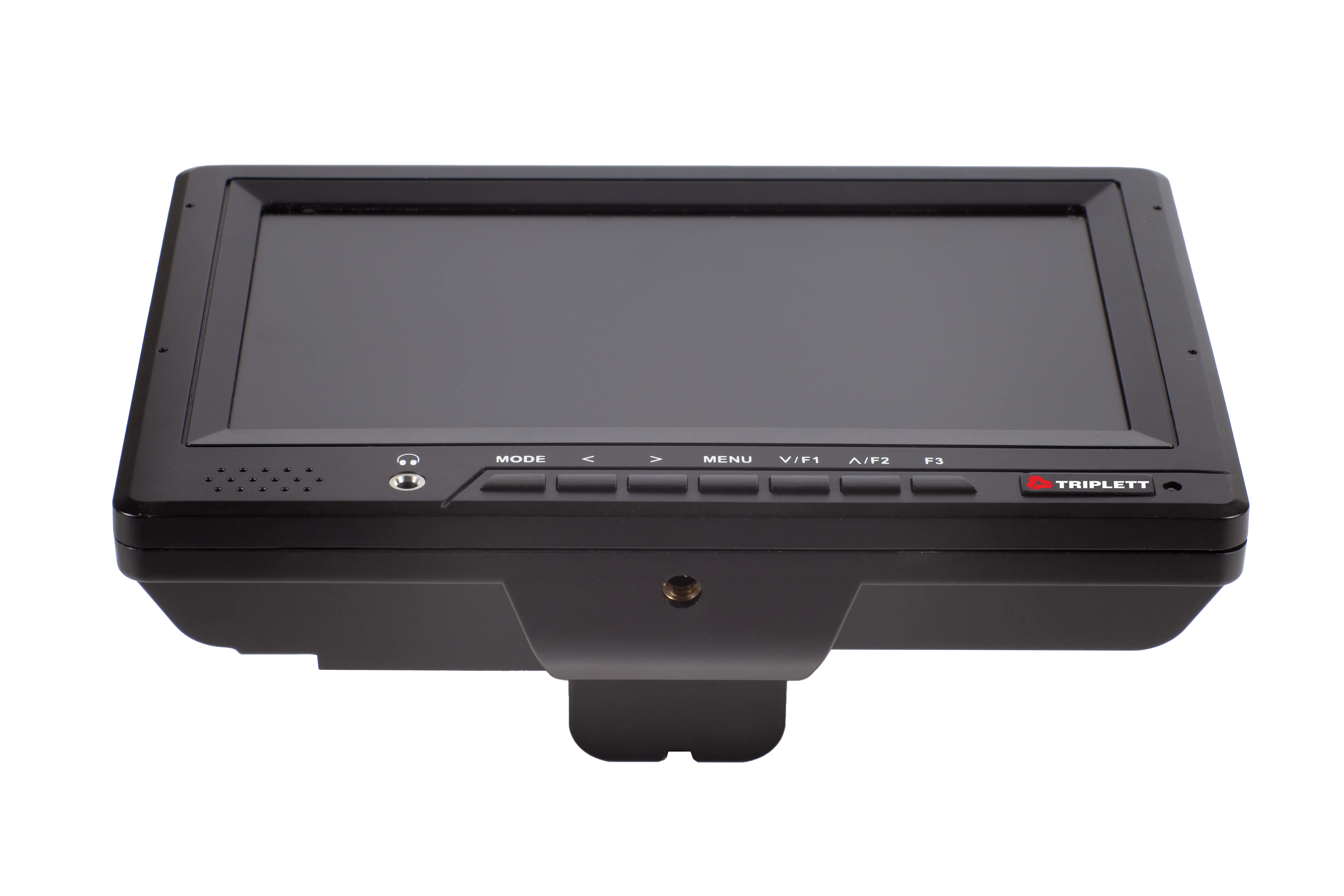

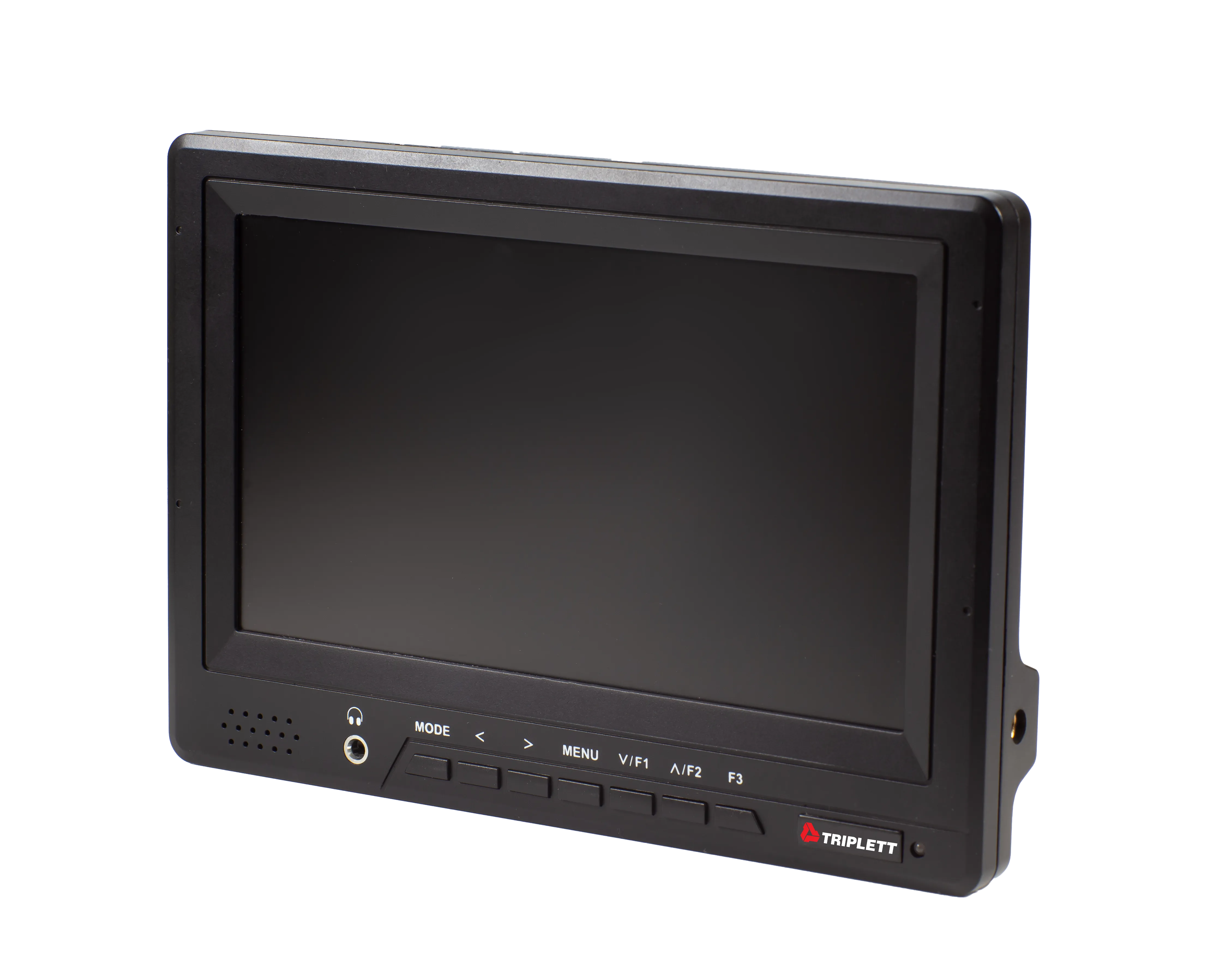

The Triplett HDCM-4K is a 7” HD TFT LCD monitor with 1920 x 1080P and 1.4 HDMI. It connects using HDMI, Composite BNC-In/BNC-Out, and Component BNC. AC powered or uses an externally mounted, easily swapped rechargeable battery.
DESCRIPTION

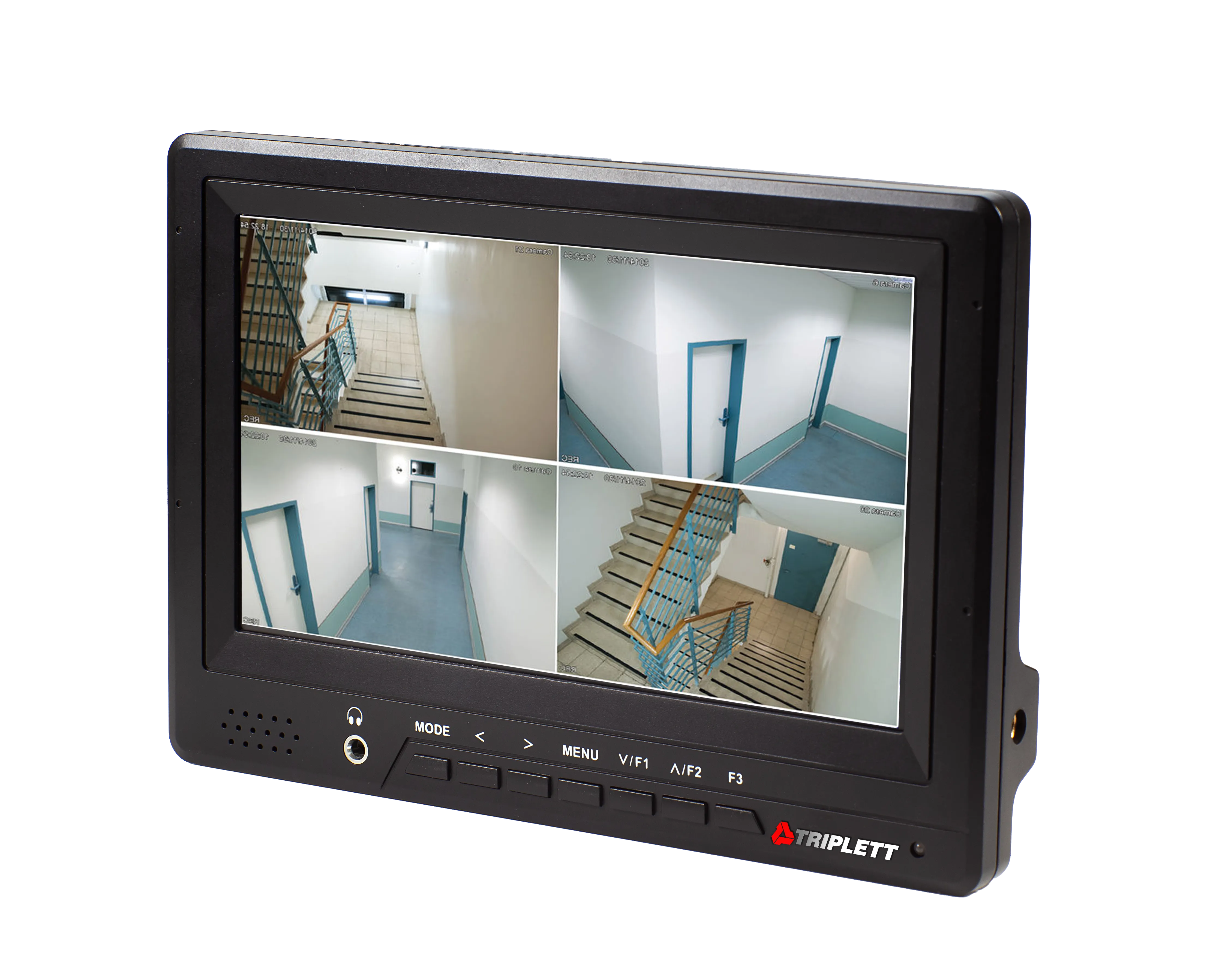

The Triplett HDCM-4K is a 7” HD TFT LCD monitor with 1920 x 1080P and 1.4 HDMI. It connects using HDMI, Composite BNC-In/BNC-Out, and Component BNC. AC powered or uses an externally mounted, easily swapped rechargeable battery. It can be used for temporary or permanent connection to any NVR, DVR, Cable/Satellite box, computer, or other video source that has an HDMI or BNC connection. Use with Security Cameras during setup, testing, and monitoring; DVRs, Cable/Satellite TV boxes, and DVD Players; Computers and Laptops as a second monitor; DSLR Cameras as a second screen while broadcasting live events; Raspberry PI Projects, and much more. Versatile stand allows placement on top of desk or DVR/NVR, mounting to wall, or mounting to IT cabinet or server rack. Includes wall-, desk-, or rack-mountable stand, AC adapter, rechargeable battery and external charger. 1 year warranty.
CATEGORY:
Features
-
7” HD TFT LCD monitor with 1920 x 1080P and 1.4 HDMI
-

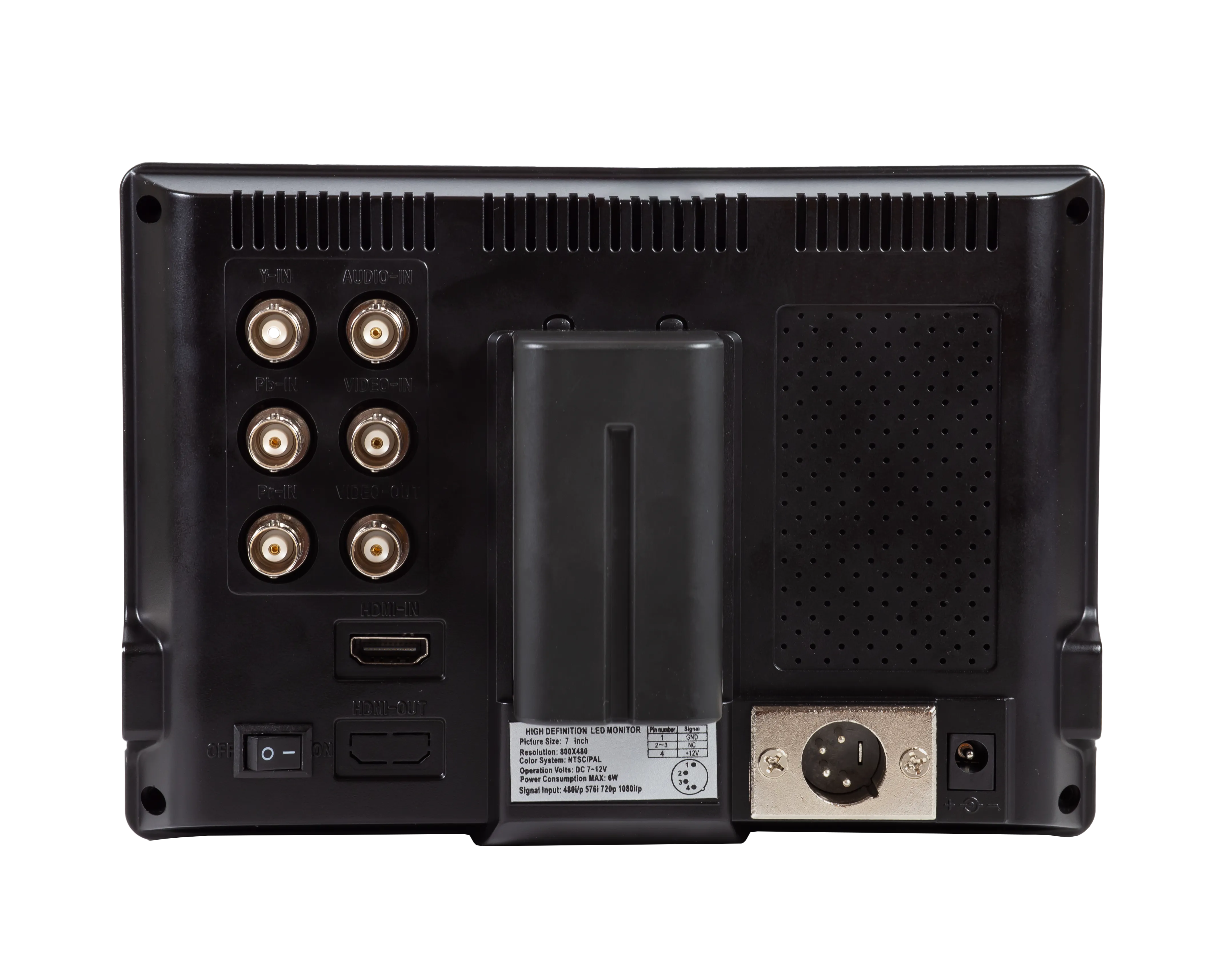

Connects using HDMI, Composite BNC-In/BNC-Out, and Component BNC
-
AC powered or uses an externally mounted, easily swapped rechargeable battery with external battery charger
-
Compact and light weight
-
Wall-, desk-, or rack-mountable
Product Overview
Specifications
| HDCM-4K | |
| Screen Size | 7” TFT LCD |
| Backlight Lamp | LED Backlight |
| Resolution | 800 xx 480 up to 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Brightness | 450cd/m2 |
| Contrast | 500:01:00 |
| Viewing Angle | 70°/70° (L/R), 50°/70° (U/D) |
| Display Mode | 480i/p, 576i/p, 720p (50/60Hz) PAL/NTSC |
| Software Functions | Canon 5D II Camera Mode, Center Marker, Screen Marker, Aspect Ratio, Color Mode, Underscan/Overscan |
| Function Keys | Left, Right, Menu, Up, Down, Mode, Power |
| Audio | 1 BNC input; 3.5mm earphone jack; Built-in 1W speaker in front panel |

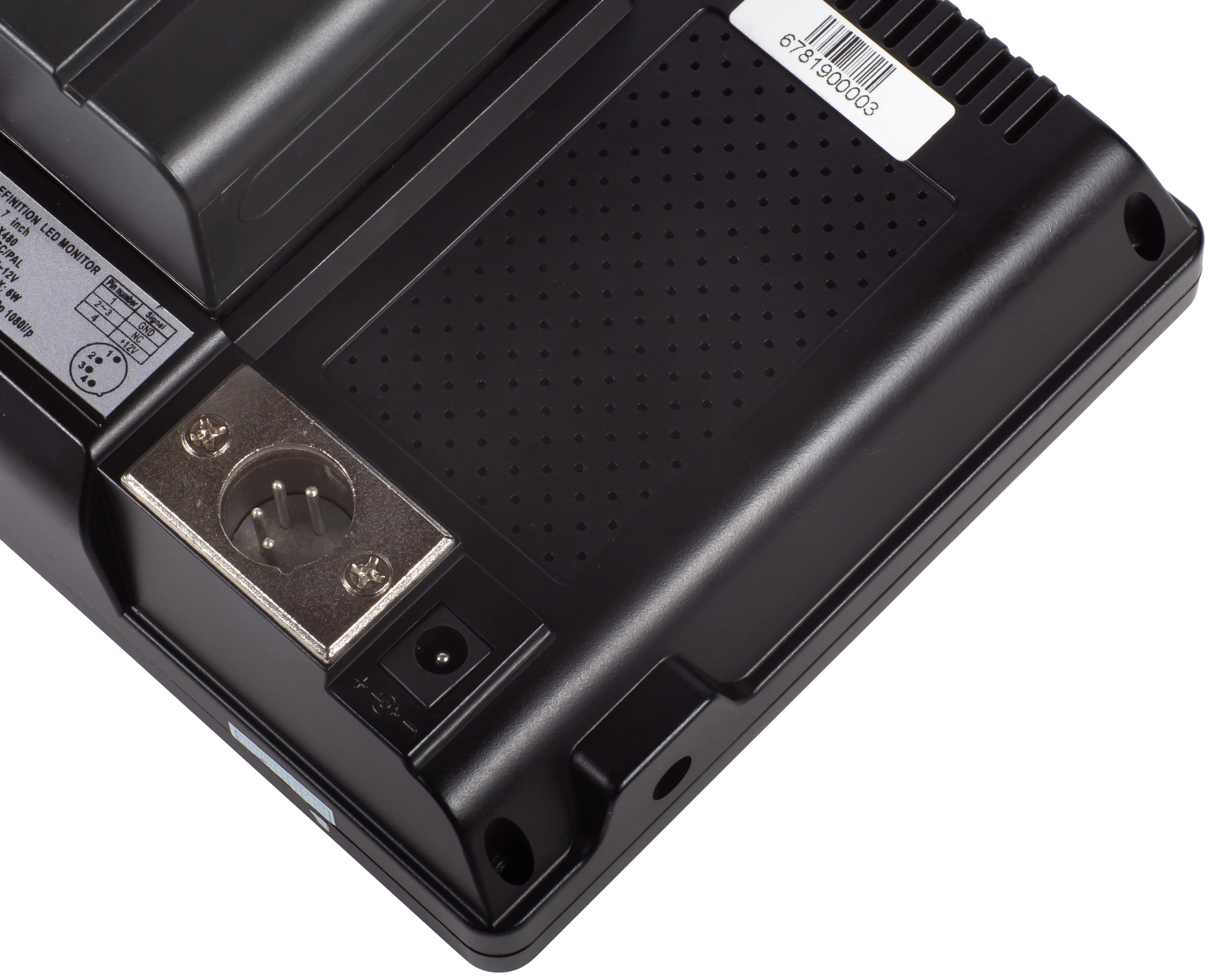

| Power | 100 to 240VAC, rechargeable battery, or 12VDC (XLR Connector) |
| Dimensions/Weight | 7.4 x 5.2 x 1.2” (188 x 130.7 x 31mm) / 1lb (0.45kg) |
Includes
- Wall-, desk-, or rack-mountable stand,
- AC adapter
- Rechargeable battery
- External charger
